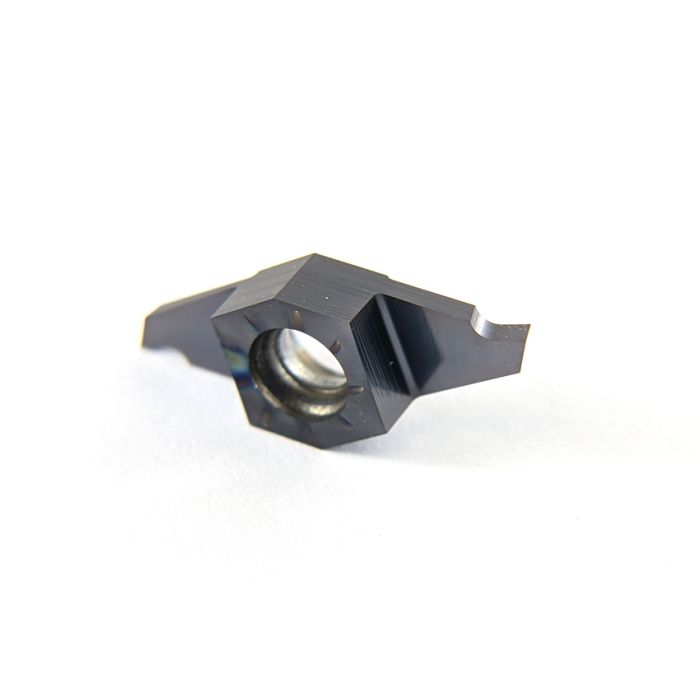

1602-0.8-5 R SPT UHM20 HPX
0
- GSI Part
- 7005-039903
- Series
- CUT1600
- Operation/Geometry
- Cut-Off
- Chip Breaker
- SPT Chip Breaker
- Execution
- Right Handed Standard Cut
- Grade / Coating
- UHM20 HPX
- Depth Of Cut (c)
- 5 mm
- Width Of Cut (a)
- 0.8 mm
- Relief Angle (β)
- 20°
- Nose Radius (r)
- 0 mm
- Clearance (α)
- 15°
multidec® 1600 Series Swiss Tools are designed for micro turning and grooving operations in Swiss-type CNC machines. Perfectly designed for the smallest of Swiss machines the 1600 series excels at work under .125" in diameter. Tough carbide grades combined with a variety of coatings enhance tool life in tough materials typically machined in Swiss-type applications.
- One multidec® 1600 series turning holder will accommodate any multidec® 1600 series inserts.
- Repeatability within .0004in
- Insert pocket absorbs cutting forces, reducing damage to holder
- Coolant-Thru
