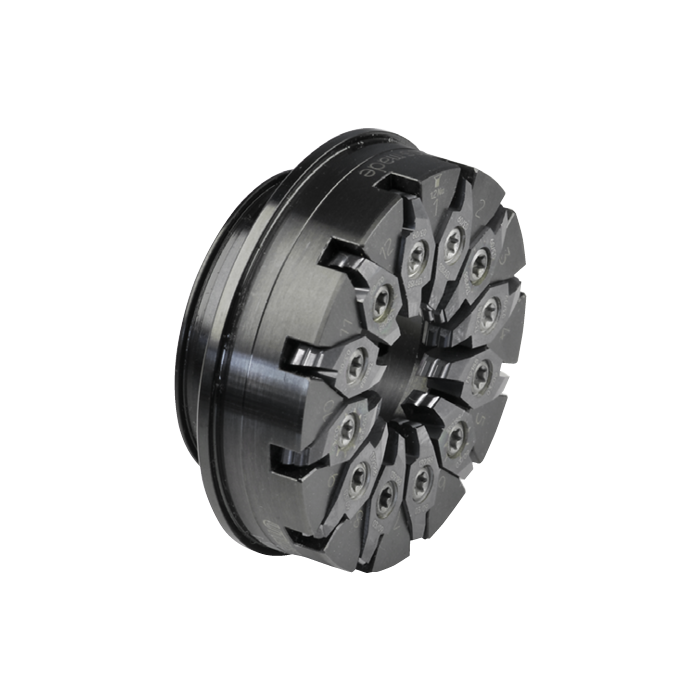

MWT06 164 2035 240 09: Whirling Ring Assembly
0
- GSI Part
- 6510-149527
- Ring Type
- Thread Whirling Assembly Type B
- Flight Circle (DF)
- 6
- Number of Insert Pockets (z)
- 9
- (DA)
- 20
- (DK)
- 35
- Ring OD (DM)
- 35
- (LT)
- 24
- Machine Make / Spindle Manuf. / Spindle Model
- Citizen / Madaula / CZ.035.K12/K16, Citizen / Madaula / CZ.035.K12/K16-15, Citizen / PCM / GSW-101-000, Citizen / Madaula / CZ.035.M12/M16, Citizen / Madaula / CZ.035.M12/M16T-15, Citizen / PCM / KSW-101-000, Citizen / Madaula / CZ.035.M20/M32T, Citizen / PCM / LSW-215-000, Citizen / Madaula / CZ.035.M20/M32T-15, Citizen / PCM / LSW-424-15, Citizen / PCM / LSW-515-000, Citizen / PCM / LSW-515-PR, Citizen / PCM / MSW-101-000, Citizen / PCM / LSW101-L20-000, Hanwha / Madaula / P.035.00063, Gildemeister / PCM / SPW-1220, Star / Madaula / 1110.00055, Star / PCM / E20-WI-000, Nomura / PCM / NN20-W15
Thread whirling is a fast & accurate method of producing long threaded parts on a Swiss-type machine. By employing more cutting teeth, the GenSwiss/UTILIS whirling system greatly enhances productivity by allowing increased speeds and feeds while maintaining rigid finish qualities required by the medical implant industry.
- Increased Number Of Available Cutters
- Increased Speeds & Feeds
- Decreased Chip-Load per Insert
- Significant Tool Life Increase
TYPE A- Modular System
- Reduces Setup Time
- Interchangeable 2-Part System
- ±0.005mm Guaranteed Concentricity
