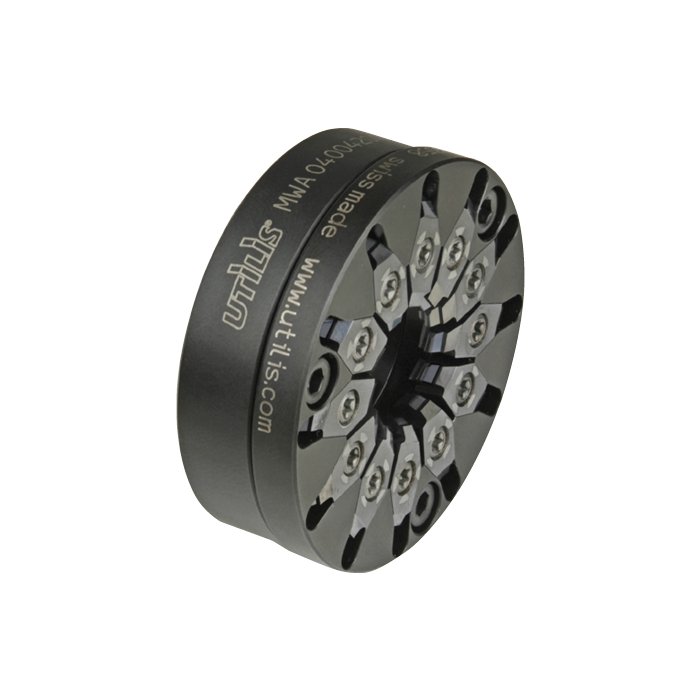

MWT12 164 4045 190 09: Whirling Ring Assembly
0
- GSI Part
- 6510-119979
- Ring Type
- Thread Whirling Assembly Type A
- Flight Circle (DF)
- 12
- Number of Insert Pockets (z)
- 9
- (DA)
- 40
- (DK)
- 45
- Ring OD (DM)
- 46
- (LA)
- 11
- (LT)
- 19
- Machine Make / Spindle Manuf. / Spindle Model
- Aerpiz / 0M171-00, Star / PCM / SR20J-W20-3D, Star / Star / 431-72-00, Madaula / 1110.00037, PCH / HP-681-72, SU-matic / AWS 1:1
Thread whirling is a fast & accurate method of producing long threaded parts on a Swiss-type machine. By employing more cutting teeth, the GenSwiss/UTILIS whirling system greatly enhances productivity by allowing increased speeds and feeds while maintaining rigid finish qualities required by the medical implant industry.
- Increased Number Of Available Cutters
- Increased Speeds & Feeds
- Decreased Chip-Load per Insert
- Significant Tool Life Increase
TYPE A- Modular System
- Reduces Setup Time
- Interchangeable 2-Part System
- ±0.005mm Guaranteed Concentricity
