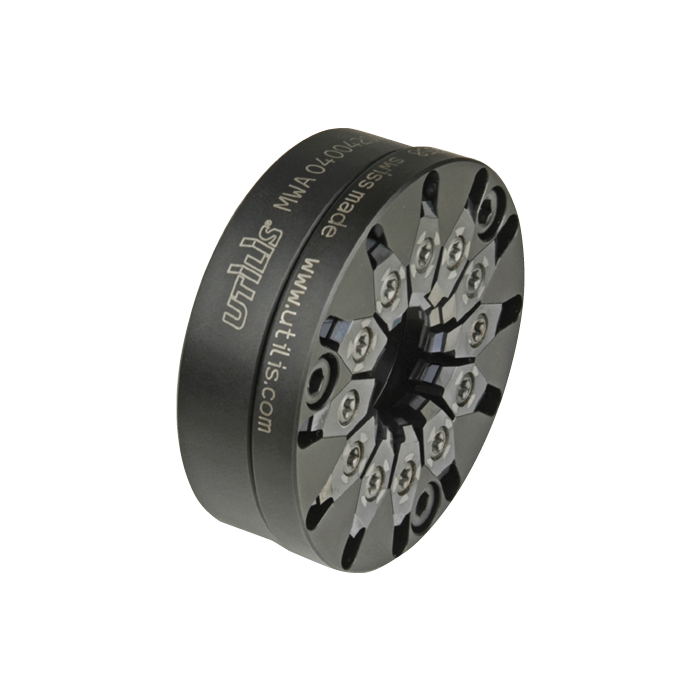

MWT12 164 5252 220 12: Whirling Ring Assembly
0
- GSI Part
- 6510-119426
- Ring Type
- Thread Whirling Assembly Type A
- Flight Circle (DF)
- 12
- Number of Insert Pockets (z)
- 12
- (DA)
- 52
- (DK)
- 52
- Ring OD (DM)
- 46
- (LT)
- 22
- Machine Make / Spindle Manuf. / Spindle Model
- Tsugami / Tsugami / 3268-Y452, Tsugami / Tsugami / 3268-Y453, Tsugami / Tsugami / 3268-Y454, Tsugami / Tsugami / 3268-Y455, Tsugami / Tsugami / 3281-Y451, Tsugami / Tsugami / 3281-Y450
Thread whirling is a fast & accurate method of producing long threaded parts on a Swiss-type machine. By employing more cutting teeth, the GenSwiss/UTILIS whirling system greatly enhances productivity by allowing increased speeds and feeds while maintaining rigid finish qualities required by the medical implant industry.
- Increased Number Of Available Cutters
- Increased Speeds & Feeds
- Decreased Chip-Load per Insert
- Significant Tool Life Increase
TYPE A- Modular System
- Reduces Setup Time
- Interchangeable 2-Part System
- ±0.005mm Guaranteed Concentricity
