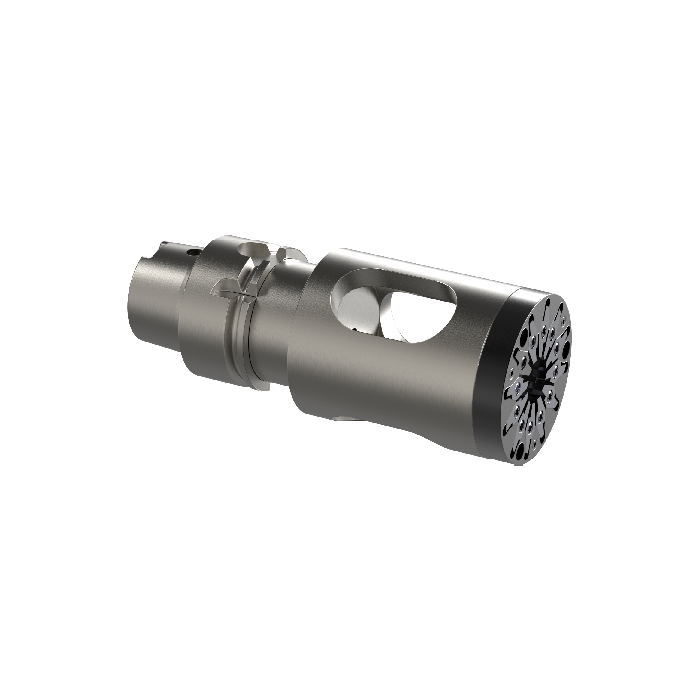

MWT12 164 2646 0950 09 HSK40 A: Whirling Ring Assembly
0
- GSI Part
- 6510-119015
- Ring Type
- HSK Type A
- Flight Circle (DF)
- 12
- Number of Insert Pockets (z)
- 9
- (DA)
- HSK40A
- (DK)
- 46
- Ring OD (DM)
- 46
- (LT)
- 89
- Machine Make / Spindle Manuf. / Spindle Model
- Utilis / HSK A 40
Thread whirling is a fast & accurate method of producing long threaded parts on a Swiss-type machine. By employing more cutting teeth, the GenSwiss/UTILIS whirling system greatly enhances productivity by allowing increased speeds and feeds while maintaining rigid finish qualities required by the medical implant industry.
- Increased Number Of Available Cutters
- Increased Speeds & Feeds
- Decreased Chip-Load per Insert
- Significant Tool Life Increase
TYPE A- Modular System
- Reduces Setup Time
- Interchangeable 2-Part System
- ±0.005mm Guaranteed Concentricity
