CIT-MSH110-080: Hob Spdl M416, Ø8 Arbor, i/o 1:1, Turret, Adj.±0-10°, Ext Coolant,Cutter Ø24x16
0
- GSI Part
- 5505-000627
- Machine Make
- Citizen
- Machine Model
- M4-32
- Work Location
- Turret
- Operation
- Gear Hobbing
- Static or Live
- Live Tool
- Single Or Double Ended
- Single Ended
- Speed
- 1:1
- Tool Size
- Ø8mm
- Holds # Of Tools
- 1
- Adjustable Range
- Adjustable ±10°
- Notes
- 16-24mm tool diameter.6-16mm tool width.
- Max Tool Thickness
- 16mm
- Max Tool Diameter
- 24mm
- Cooling
- External Cooling

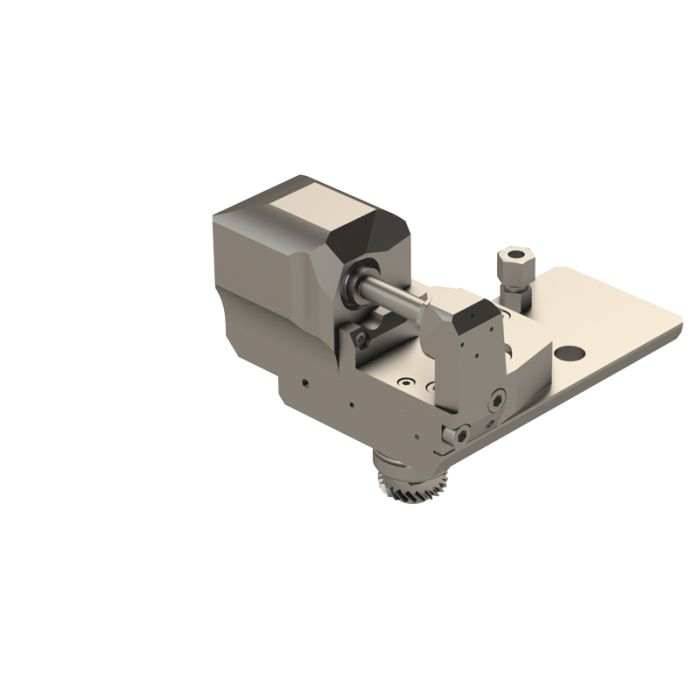

This is a hobbing tool holder that mounts on the turret of Citizen M16 machines. It has a ø8mm shank diameter, and the compatible mill cutter dimensions for the holder are ø16-18-24mm and 6-8-10-12-16mm wide. It has an angular adjustability of ±10° and comes equipped with exterior high pressure coolant capability!
