CIT-MSH110-035: Hob Spdl M416, Ø3.5 Arbor, i/o 1:1, Turret, Adj.±0-10°, Ext Coolant,Cutter Ø10x6
0
- GSI Part
- 5505-000626
- Machine Make
- Citizen
- Machine Model
- M4-32
- Work Location
- Turret
- Operation
- Gear Hobbing
- Static or Live
- Live Tool
- Single Or Double Ended
- Single Ended
- Speed
- 1:1
- Tool Size
- Ø3.5mm
- Holds # Of Tools
- 1
- Adjustable Range
- Adjustable ±10°
- Notes
- 8-10mm tool diameter. 4-6mm tool width.
- Max Tool Thickness
- 6mm
- Max Tool Diameter
- 10mm
- Cooling
- External Cooling

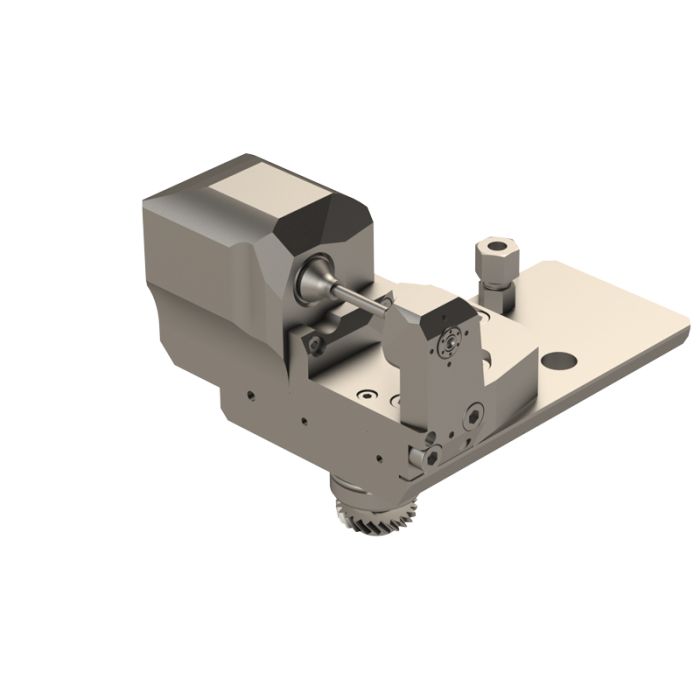

This is a hobbing tool holder that mounts on the turret of Citizen M16 machines. It has a ø3.5mm shank diameter, and the compatible mill cutter dimensions for the holder are ø8-10mm and 4,5,6mm wide. It has an angular adjustability of ±10° and comes equipped with exterior high pressure coolant capability!
