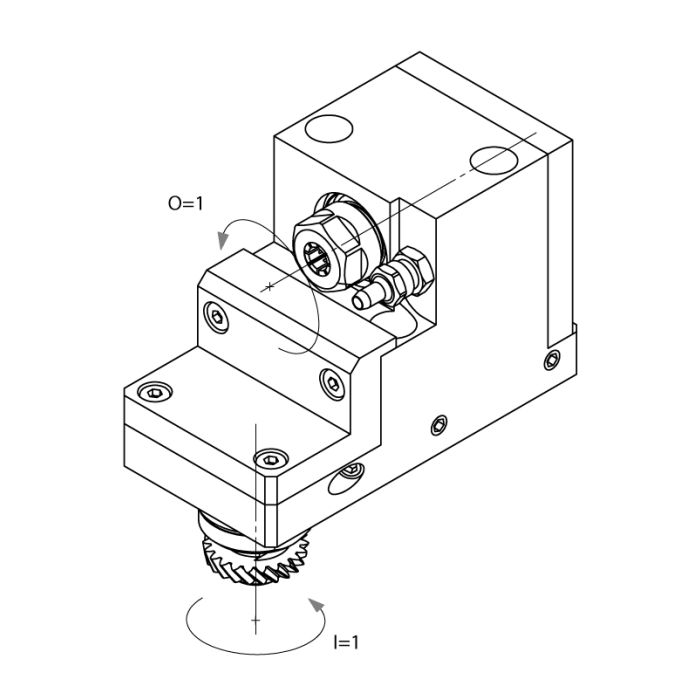

CIT-MSE-403: 90° Spindle For M12/16, ER11, i/o 1:1, For Turret, Ext Coolant, Drill Depth 35mm
0
- GSI Part
- 5505-000618
- Machine Make
- Citizen
- Machine Model
- M2-12, M3-12, M2-16, M3-16, M4-16
- Work Location
- Turret
- Operation
- End Drilling / Milling
- Static or Live
- Live Tool
- Single Or Double Ended
- Single Ended
- Speed
- 1:1
- Tool Size
- ER11
- Holds # Of Tools
- 1
- Notes
- Drill depth 35mm.
- Cooling
- External Cooling
This is a live tool holder for use on the turret of Citizen M16 machines. It uses ER11 collets for toolholding and comes equipped with exterior high pressure coolant capability!
