CIT-MSC-507-2x: 0° 2X Accel Spdl A20/L12/L220/L32/M16/M32, ER11, i/o 1:2.1, T06-10, T21-23, T31-34
0
- GSI Part
- 5505-000608
- Machine Make
- Citizen
- Machine Model
- A3-20, L1-12, L20E, L20X, L1-32, M2-12, M3-12, M2-16, M3-16, M4-16, M2-20, M3-20, M2-32, M3-32, M4-32, M5-32
- Work Location
- Main & Sub
- Operation
- Cross Drilling / Milling
- Static or Live
- Live Tool
- Single Or Double Ended
- Single Ended
- Speed
- Increased 2.0X
- Tool Size
- ER11
- Holds # Of Tools
- 1
- Notes
- High speed spindle.

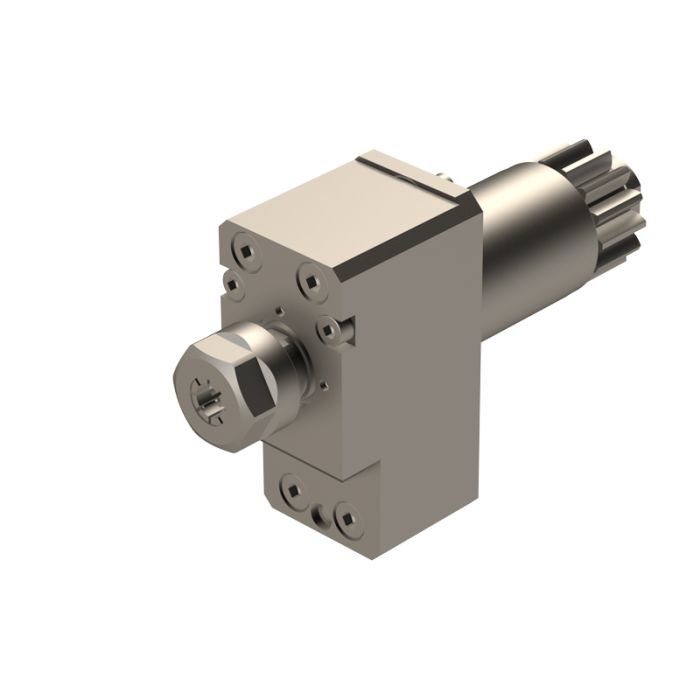

This is an accelerated live tool holder for use on Citizen A20/L12/L20/L25/A32/L32/M16/M32 machines. This holder mounts on the upper gang tool post or back tool post and uses ER11 collets for toolholding. The 1:2 gear ratio makes this ideal for applications using micro-drills and micro-endmills.
