CIT-LSW215-II: Whirler L20/L20E/M32, i/o 1:1 Adj. ± 15°, Pos T08-10, No Ring Inc, Req. 2 Positions
0
- GSI Part
- 5505-000591
- Machine Make
- Citizen
- Machine Model
- L20E, L20X, L2-20, M2-20, M3-20, M2-32, M3-32
- Work Location
- Gang Slide
- Operation
- Thread Whirling
- Static or Live
- Live Tool
- Single Or Double Ended
- Single Ended
- Speed
- 1:1
- Holds # Of Tools
- 1
- Adjustable Range
- Adjustable ±5°

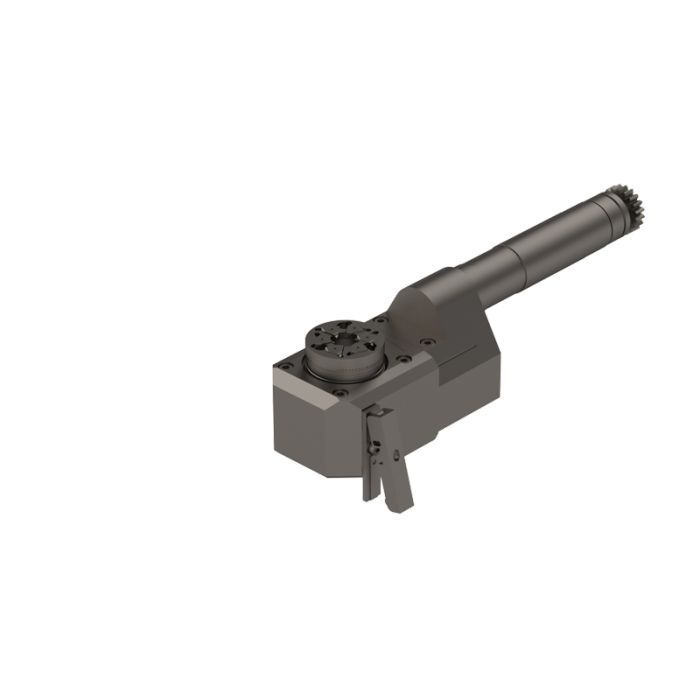

This is a whirling tool holder that mounts on the upper gang tool post of Citizen L20/L25/M32 machines. The holder has an angular adjustment of ±15° for the lead angle of the thread.
