CIT-GSS507-10: 0° Saw Spindle For M416, Arbor Ø10mm, Cutter Ø30-50mm max, i/o 1:1, Pos T08
0
- GSI Part
- 5505-000548
- Machine Make
- Citizen
- Machine Model
- M4-16
- Work Location
- Gang Slide
- Operation
- Slitting Saw
- Static or Live
- Live Tool
- Single Or Double Ended
- Single Ended
- Speed
- 1:1
- Tool Size
- Ø10mm
- Holds # Of Tools
- 1
- Notes
- 30-50mm tool diameter. 3mm max thickness.
- Max Tool Thickness
- 3mm
- Max Tool Diameter
- 50mm

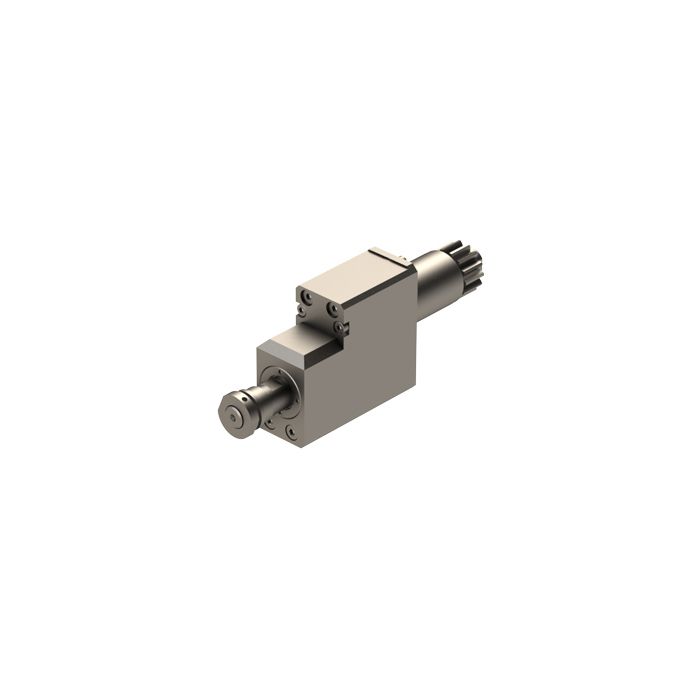

This is a slitting saw live tool for use on the upper gang tool post of a Citizen M16 machine. It has a 8mm shank diameter, and can support a 30-50mm diameter and up to a 3mm thick saw blade.
