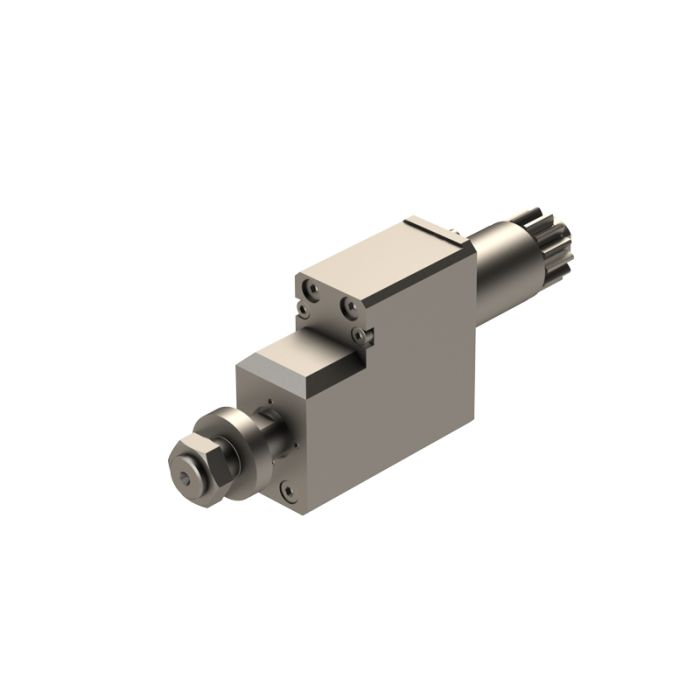

CIT-GSS507: 0° Saw Spindle For M416, Arbor Ø13mm, Cutter Ø50mm max, i/o 1:1, Pos T06-09
0
- GSI Part
- 5505-000546
- Machine Make
- Citizen
- Machine Model
- M4-16
- Work Location
- Gang Slide
- Operation
- Slitting Saw
- Static or Live
- Live Tool
- Single Or Double Ended
- Single Ended
- Speed
- 1:1
- Tool Size
- Ø13mm
- Holds # Of Tools
- 1
- Max Tool Thickness
- 6mm
- Max Tool Diameter
- 50mm
This is a slitting saw live tool for use on the upper gang tool post of a Citizen M16 machine. It has a 13mm shank diameter, and can support up to a 50mm diameter and 6mm thick saw blade.
