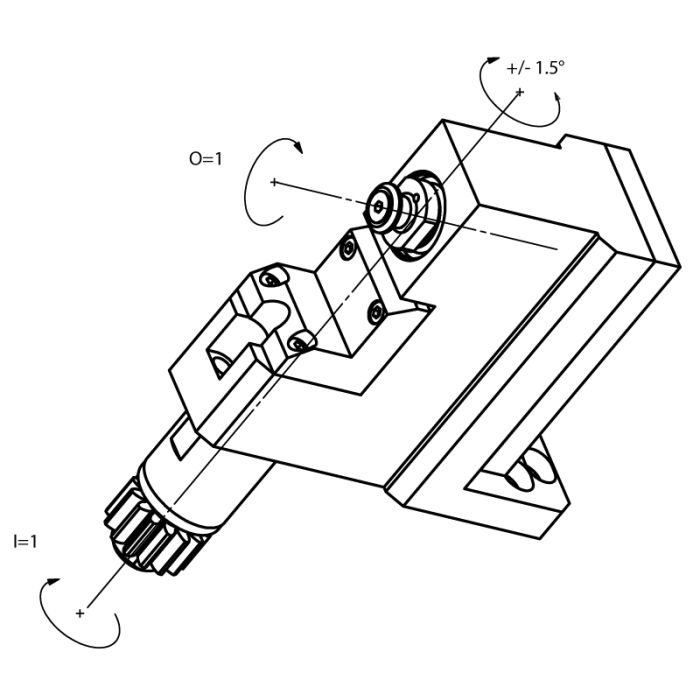

CIT-GSP080: Polygon Spindle For L12, Arbor Ø8mm, Cutter Ø30-70mm max, i/o 1:1, Pos T09-10,±0-1.5°
0
- GSI Part
- 5505-000538
- Machine Make
- Citizen
- Machine Model
- L1-12
- Work Location
- Gang Slide
- Operation
- Polygon Milling
- Static or Live
- Live Tool
- Single Or Double Ended
- Single Ended
- Speed
- 1:1
- Tool Size
- Ø8mm
- Holds # Of Tools
- 1
- Adjustable Range
- Adjustable ±1.5°
- Notes
- 30-70mm tool diameter. 3-6mm tool thickness.
- Max Tool Thickness
- 6mm
- Max Tool Diameter
- 70mm
This is a specialty hobbing tool holder that mounts on the upper gang tool post of Citizen L12 machines. It has a ø4.5mm shank and has a ±5° adjustability.
