CIT-GSF080: Poly/Thread Hob Spdl L12/M416, Arbor Ø8mm, Max Cutter Ø56mm, i/o 1:1,Pos T08-10, ±4°
0
- GSI Part
- 5505-000529
- Machine Make
- Citizen
- Machine Model
- L1-12, M4-16
- Work Location
- Gang Slide
- Operation
- Polygon Milling
- Static or Live
- Live Tool
- Single Or Double Ended
- Single Ended
- Speed
- 1:1
- Tool Size
- Ø8mm
- Holds # Of Tools
- 1
- Adjustable Range
- Adjustable ±4°
- Max Tool Diameter
- Ø56mm

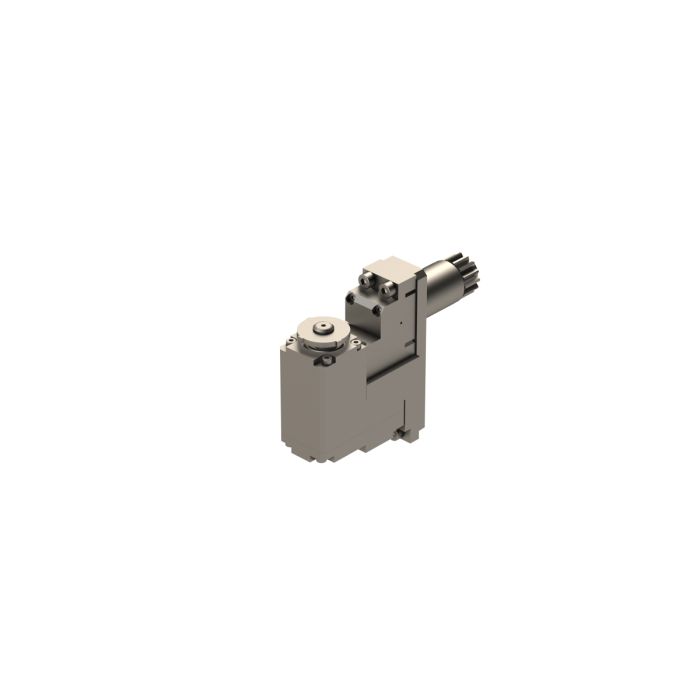

Single front working spindle attachment live tool for axial work on Citizen M2-16 and M3-16 machines, installs into gang tool positons. Has gear reduction for added torque
