CIT-GDF1502-IK: ID 3 Pos Dog Leg, Ø3/4" Bores, A32/M32 T10/T34-37, Int/Ext Cool by Vales 100 Bar
0
- GSI Part
- 5505-000480
- Machine Make
- Citizen
- Machine Model
- M2-20, M3-20, M2-32, M3-32, M4-32
- Work Location
- Gang Slide
- Operation
- Round Shank Tool Holder
- Static or Live
- Static Tool
- Single Or Double Ended
- Single Ended
- Tool Size
- Ø.75in
- Holds # Of Tools
- 3
- Notes
- Internal coolant max pressure 200 bar. External coolant max pressure 100 bar.
- Cooling
- Internal & External Cooling (Control Valve)

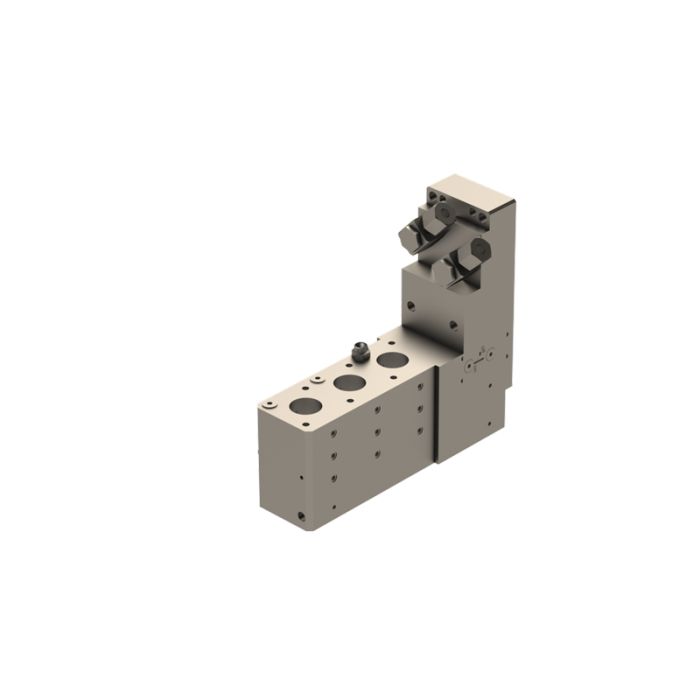

This is a static tool holder with 3X 19.05mm stations for Citizen M32 machines. The mounting locations are as follows: CITIZEN M32 Ill-V-VII Gang tools 1.134B - T10. CITIZEN M32 VII-VIII : Back rotary tools U152B - T34-T37. CITIZEN A32 :Gang tools 1330B - T10. It comes fully equipped with interior and exterior high pressure coolant capability!
