CIT-CDF905-HP: ID 6 Pos Holder (2) Ø1/2" and (4) Ø3/4" M232-V, Ext Coolant Delivery 100 Bar Max.
0
- GSI Part
- 5505-000472
- Machine Make
- Citizen
- Machine Model
- M2-20, M3-20, M2-32, M3-32, M4-32, M5-32
- Work Location
- Turret
- Operation
- Round Shank Tool Holder
- Static or Live
- Static Tool
- Single Or Double Ended
- Single Ended
- Tool Size
- Ø.5in, Ø.75in
- Holds # Of Tools
- 6
- Notes
- Max pressure 100 bar. Hold (2) Ø.5in, (4) Ø.75in
- Cooling
- External Cooling

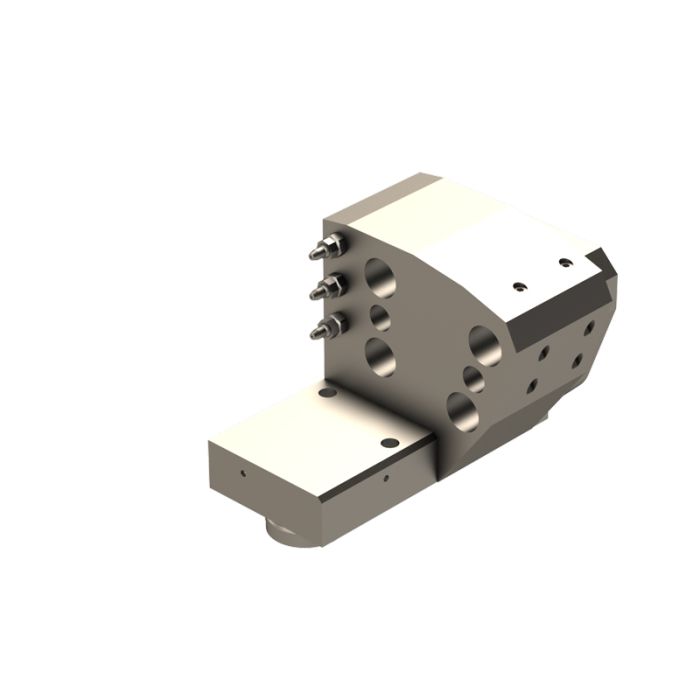

This is a 6 station static tool holder that mounts on the turret of Citizen M32 and M532 machines. This holder has 4X19.05mm postitions and 2X12.7mm positions. It comes fully equipped with exterior high pressure coolant capability.
