CIT-CDF401-AR: ID 2 Position Holder Ø1" Bores, For M20/32, 73mm Drill Depth, Coolant to Bottom Pos
0
- GSI Part
- 5505-000467
- Machine Make
- Citizen
- Machine Model
- M2-20, M3-20, M2-32, M3-32, M4-32, M5-32
- Work Location
- Turret
- Operation
- Round Shank Tool Holder
- Static or Live
- Static Tool
- Single Or Double Ended
- Single Ended
- Tool Size
- Ø1in
- Holds # Of Tools
- 2
- Notes
- 73mm drill depth. Internal cooling for bottom position.
- Cooling
- Internal Cooling

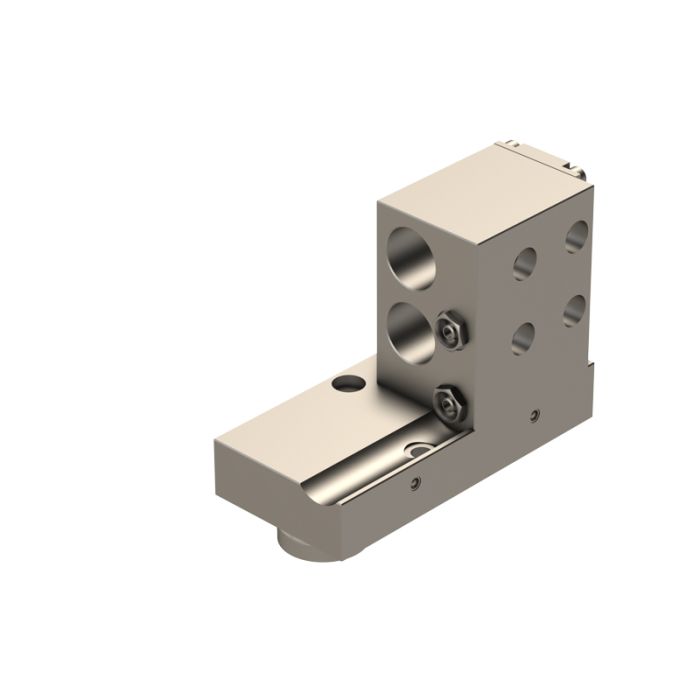

This is a static tool holder that mounts on the turret of Citizen M32 and M532 machines. It has 2x ø25.4mm tool stations.
