CIT-KSE1410: 90° 2X Accel Spdl M5-32, ER16, i/o 1:2, Turret, Int Coolant 120 Bar, Drill Depth 26
0
- GSI Part
- 5505-000408
- Machine Make
- Citizen
- Machine Model
- M5-32
- Work Location
- Turret
- Operation
- End Drilling / Milling
- Static or Live
- Live Tool
- Single Or Double Ended
- Single Ended
- Speed
- Increased 2.0X
- Max RPM
- 18000
- Tool Size
- ER16
- Holds # Of Tools
- 1
- Notes
- Max pressure 120 bar.
- Cooling
- Internal Cooling

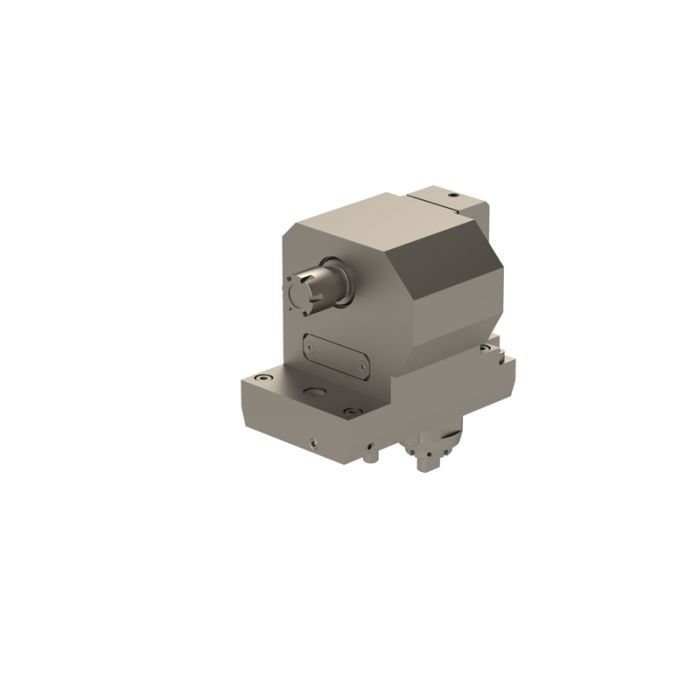

This is an accelerated live tool holder that mounts on the turret of Citizen M532 machines. It uses ER16 collets for toolholding and comes equipped with interior high pressure coolant capability. The 1:2 gear ratio makes it ideal for applications using micro drills and micro endmills.
