CIT-KSC-DEC-L-10x3-V: 0° 3X Accel Shifted Spindle M5-32,ER11,i/o 1:3, Ext Coolant,15mm from Z0
0
- GSI Part
- 5505-000389
- Machine Make
- Citizen
- Machine Model
- M5-32
- Operation
- Cross Drilling / Milling
- Static or Live
- Live Tool
- Single Or Double Ended
- Single Ended
- Speed
- Increased 3.0X
- Max RPM
- 15000
- Tool Size
- ER11
- Holds # Of Tools
- 1
- Notes
- Offset by 10mm. Spindle extended 6mm.
- Cooling
- External Cooling

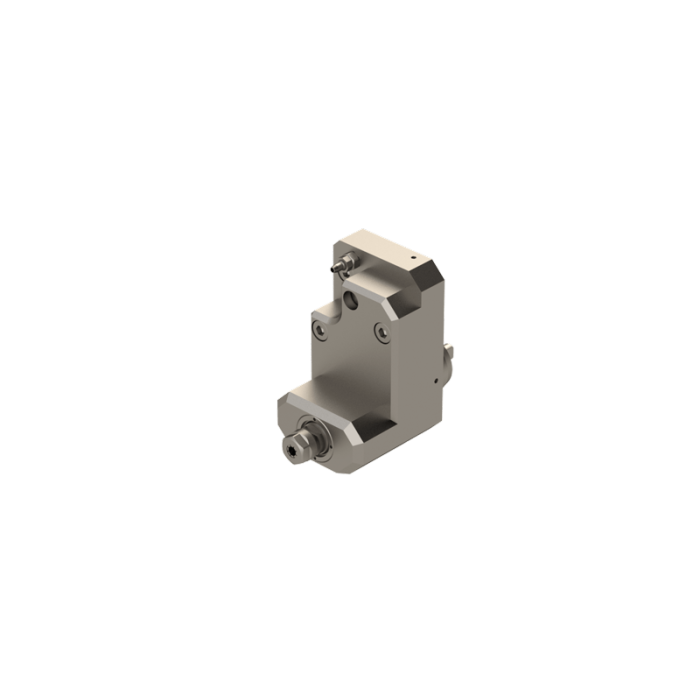

This is an accelerated tool holder that mounts on the turret of the Citizen M32-5m5 machine. It uses ER11 collets for toolholding and comes equipped with exterior high pressure coolant capability. The 1:3 gear ratio makes this holder ideal for applications using micro drills and micro endmills!
