CIT-VDF205-HP: ID Deep Drill Holder M16, Bore Ø3/4",Drill Depth 58mm,Turret,Int Coolant 100 Bar
0
- GSI Part
- 5505-000363
- Machine Make
- Citizen
- Machine Model
- M2-12, M2-16
- Work Location
- Turret
- Operation
- Round Shank Tool Holder
- Static or Live
- Static Tool
- Single Or Double Ended
- Single Ended
- Tool Size
- Ø.75in
- Holds # Of Tools
- 1
- Notes
- Max pressure 100 bar. Length: 58mm. Offset: -21.5mm. H: 45mm
- Cooling
- Internal Cooling

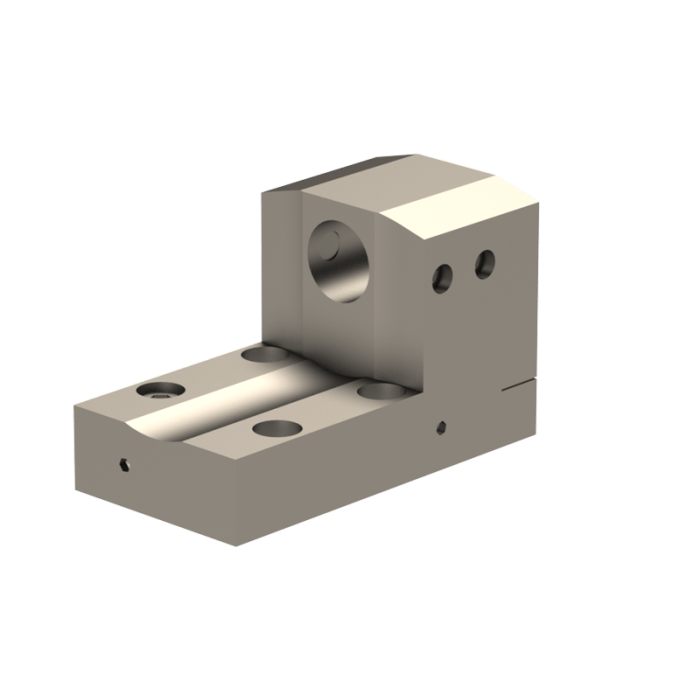

This is a static tool holder that mounts on the turret of the Citizen M16 machine. It holds a ø19.05mm(1in.) shank tool and comes equipped with interior high pressure coolant capability!
