CIT-CDF101-HP: ID Holder Ø1" Bore, M32 Turret,48mm Drill Depth,With HP Int/Ext Coolant 150 Bar
0
- GSI Part
- 5505-000336
- Machine Make
- Citizen
- Machine Model
- M2-20, M3-20, M2-32, M3-32, M4-32, M5-32
- Work Location
- Turret
- Operation
- Round Shank Tool Holder
- Static or Live
- Static Tool
- Single Or Double Ended
- Single Ended
- Tool Size
- Ø1in
- Holds # Of Tools
- 1
- Notes
- Max pressure 150 bar
- Cooling
- Internal Cooling

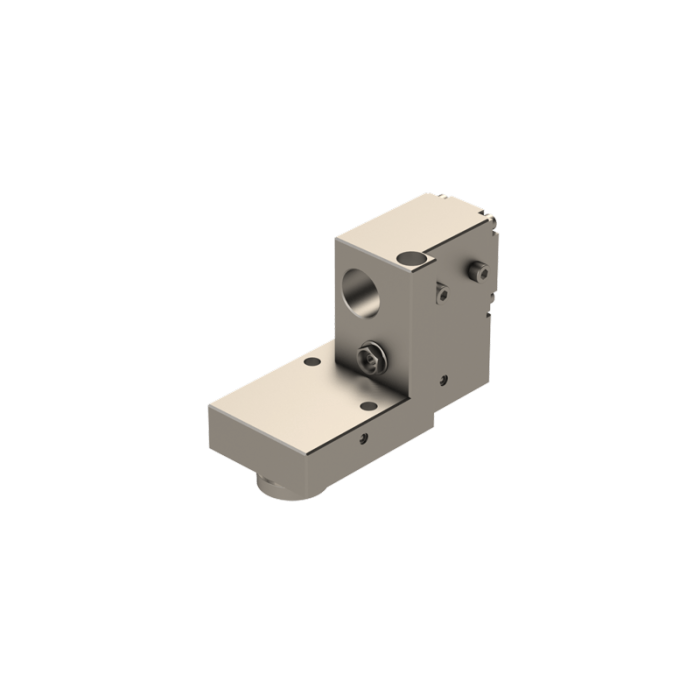

This is a static tool holder that mounts on the turrets of Citizen M32 and M532 machines. The bore size is ø1" and comes fully equipped with interior high pressure coolant capability!
