CIT-KSW-101-000: Whirl Spdl M32
0
- GSI Part
- 5505-000153
- Machine Make
- Citizen
- Machine Model
- M2-20, M3-20, M2-32, M3-32, M4-32
- Work Location
- Turret
- Operation
- Thread Whirling
- Static or Live
- Live Tool
- Single Or Double Ended
- Single Ended
- Speed
- Decreased 2.0X
- Max RPM
- 5000
- Tool Size
- Utilis Ring
- Holds # Of Tools
- 1
- Adjustable Range
- Adjustable ±10°
- Notes
- 3 tool positions are required. Thread whirling ring not included.

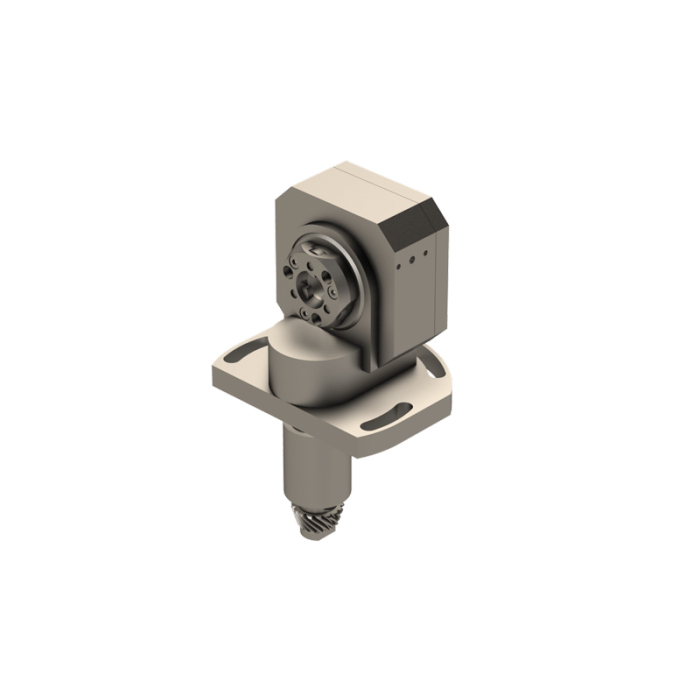

This is a thread whirling holder for use on Citizen M32 machines. It mounts on the turret of the machine, taking up 3 positions, and has a ±15° angular adjustability.
