3006-24 UN 10-60 VP L UHM30 HX

Login Required
2
This item is sold in packs of 5
GSI Part
7005-114286
Series
CUT 3006
Operation/Geometry
Threading
Thread Profile
Full Profile
Standard
Inch
Execution
L
Coating
UHM30HX
Insert Material
Carbide
Depth Of Cut (c)
2.4
Clearance (α)
60°
(P) Pitch Threads/inch
24
(P) Pitch mm
1.058
(a1)
0.6
(a2)
0.6
Leading Cutting Edge Flat (b)
8
hmin
0.649
"

multidec® world class tools deliver proven production performance and extended tool life. All 3000 series inserts feature a wide variety of chip breaker geometries and will fit the same holder, reducing tooling costs. The unique insert holding design absorbs machining forces providing one of the most rigid Swiss-turning systems available to the industry today.

multidec® Cut tools feature special cutting geometries specifically designed for cutting tough materials such as Titanium, 300 Series Stainless & 17 4 PH. This makes them the tooling of choice for the medical & aerospace manufacturing industries.

  • Repeatable within .0004""""
  • For all turning application processes
  • All insert styles fit the same holder
  • Holder design absorbs cutting forces
  • Ideal for tough applications

"""
Related Products
TE-1540-8.5: 8.5mm 3FL Carbide E/M, 34mm LOC, 10mm Shank, 92mm OAL

TE-1540-8.5: 8.5mm 3FL Carbide E/M, 34mm LOC, 10mm Shank, 92mm OAL

Learn More & Buy
MLU CI-03 R-R IC-F: 1/2" RH Multidec Coolant Thru Wedge, for Citizen K12/16, L20, A20  Holders

MLU CI-03 R-R IC-F: 1/2" RH Multidec Coolant Thru Wedge, for Citizen K12/16, L20, A20 Holders

Learn More & Buy
TE-114-2-2.5: 2.5mm  2FL Carbide Ball E/M, 4mm LOC, 3mm Shank, 38mm OAL

TE-114-2-2.5: 2.5mm 2FL Carbide Ball E/M, 4mm LOC, 3mm Shank, 38mm OAL

Learn More & Buy
TE-1540-0.65: 0.65mm 3FL Carbide E/M, 2.6mm LOC, 3mm Shank, 51mm OAL

TE-1540-0.65: 0.65mm 3FL Carbide E/M, 2.6mm LOC, 3mm Shank, 51mm OAL

Learn More & Buy
TE-113-0-3: 3mm  5FL Carbide E/M, 12mm LOC, 6mm Shank, 51mm OAL

TE-113-0-3: 3mm 5FL Carbide E/M, 12mm LOC, 6mm Shank, 51mm OAL

Learn More & Buy
VPGT 1003008 FL TOP UHM10 HX

VPGT 1003008 FL TOP UHM10 HX

Learn More & Buy
1600-16x125 LA

1600-16x125 LA

Learn More & Buy
DCGT 0702005 FN PF33 UHM20 HPX

DCGT 0702005 FN PF33 UHM20 HPX

Learn More & Buy
1600-3/4"x125 R IC

1600-3/4"x125 R IC

Learn More & Buy

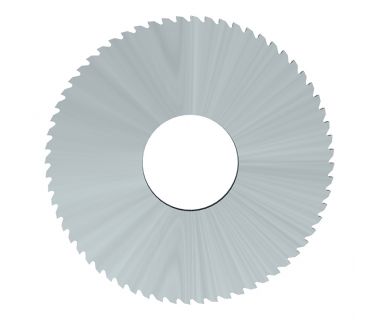

SSM-2005-090080L: Saw mm 20 OD x 5 ID x 0.9 W 80z Carbide
