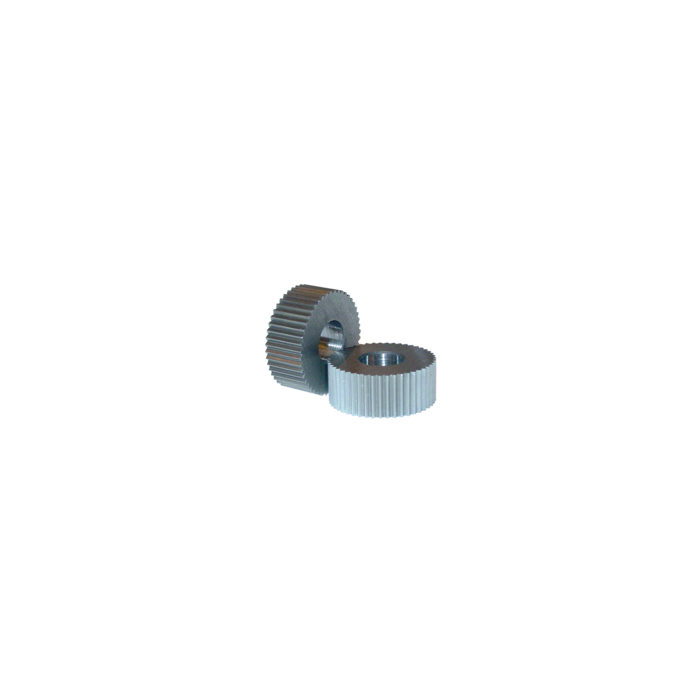

KDS-KPSV-064CO: Knurl Die KP-64/.64 DPI, Straight Tooth, .750 x .375 x .250, Convex Series
1
- GSI Part
- 2020-000161
- Knurl Series
- KPV
- Knurl Pattern
- Straight
- Form Type
- Convex
- Knurl Wheel Dimensions
- 3/4in x 3/8in x 1/4in
- Knurl Wheel ID
- 0.375 in
- Knurl Wheel OD
- 0.75 in
- Knurl Wheel Width
- 0.25 in
- Teeth Per Inch (TPI)
- 64
- Surface Treatment
- FNC
- Material
- Hi-Cobalt

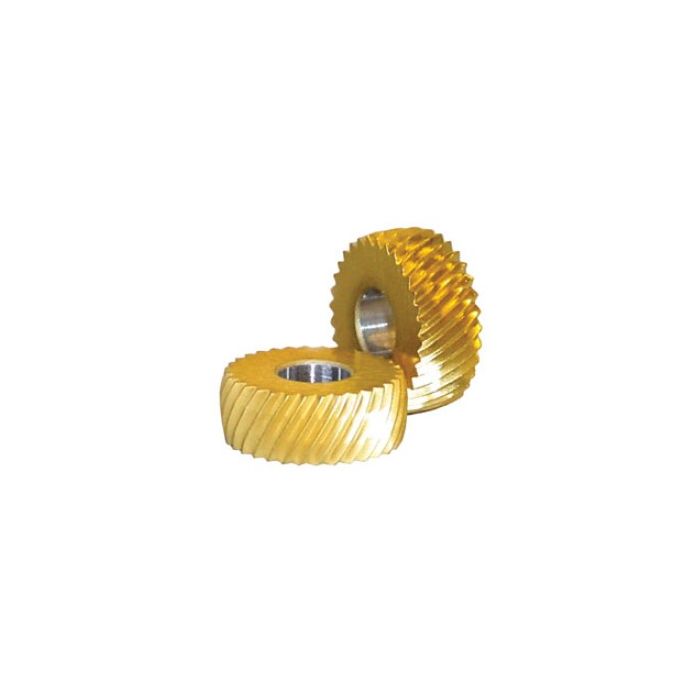

CONVEX Series Knurl Dies
For Axial Feeding - Inch
Genevieve Swiss offers a full line of precision knurling tools for Swiss-type applications. Optional wheel geometries are available to suit your specific needs. More options are available in addition to what is listed on our website. Call 413-562-4800 for details or to discuss applications.
- Hi-Cobalt HSS treated with ferritic nitrocarbunizing is standard on all CONVEX Knurls
- Full-form convex relief spreads out forces providing smoother finish
- The Ultimate knurling die for Swiss-type straddle knurling
