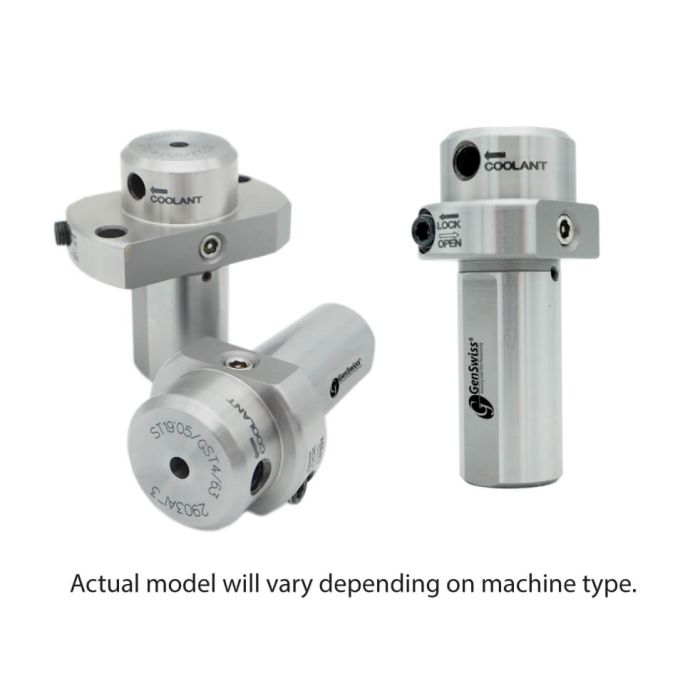

GRI-8.00-200-40/75: 1in dia. shank Hydraulic holder, 75mm OAL, 8mm ID bore w/cool, front act

Login Required
0
Call for availability or request a quote now.
GSI Part
1032-000148
Machine Type
Citizen
Clamp Type
Front Activated
Tool Bore Size (D1)
8mm
Shank OD (D2)
25.4mm
OAL (L1)
75mm
Shank Length (L2)
40mm
Coolant Fitting Thread Size
M6

Gen Grip - Front Activated Clamping (Ultra Precision)

GenSwiss® hydraulic clamping system are perfect for micro tools, extending tool life with vibration dampening and exceptional TIRs down to .00004in. An array of coolant-thru reduction sleeves further increases the compatability of this rigid holding system by allowing tool shank sizes down to 3mm.

  • Coolant-Thru ready
  • h6 Tool shanks ONLY
  • Torque wrench REQUIRED!
  • Pair ultra precision holders with ultra precision micro sleeves to enable the use of smaller shank tools
