Knurl Holders

Single Die Bump

Conventional single die bump knurling is a cost effective way to produce knurled features on the outer diameter of parts.

• Helix, Diamond or straight tooth patterns
• Ground square shank attaches to Swiss machine gang slides
• Can be axial fed on larger diameters
• Left handed available

3 products

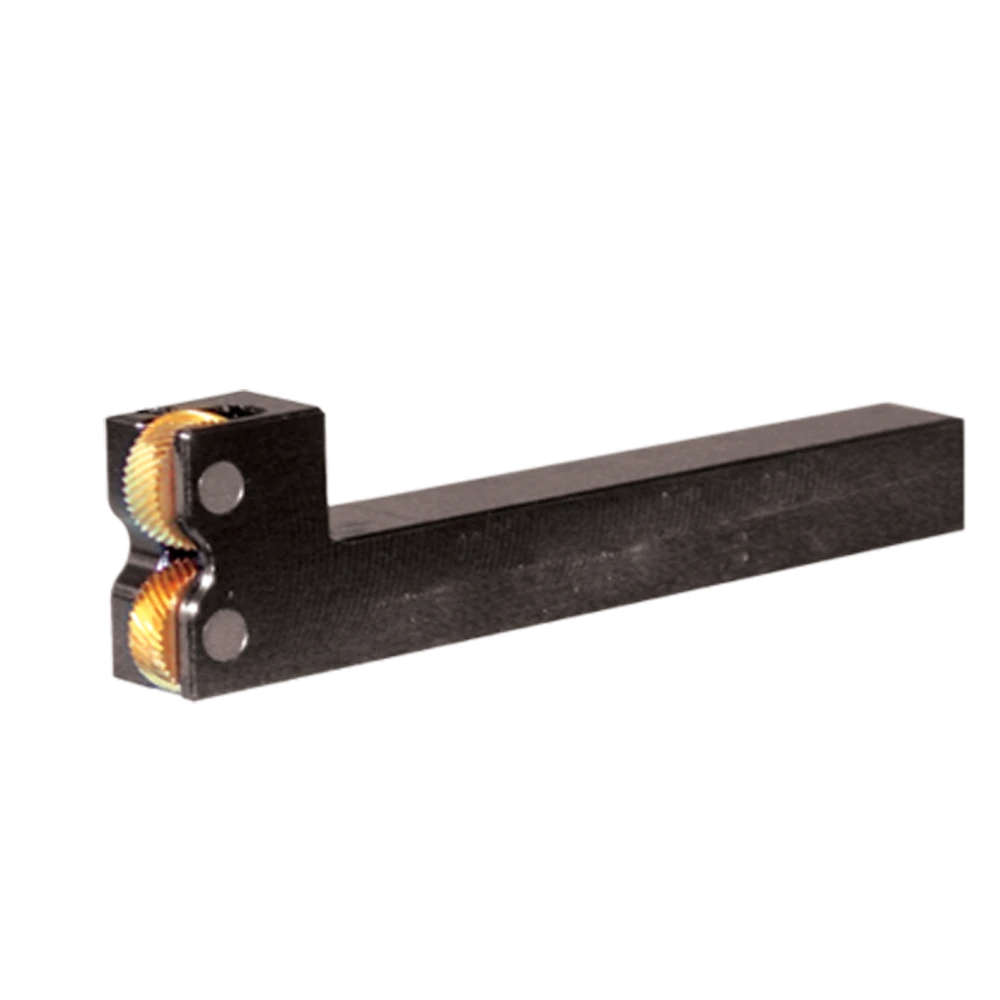

Double Die Bump

Conventional double die bump knurling is a cost effective way to produce knurled features on the outer diameter of parts.

• Helix, Diamond or straight tooth patterns
• Ground square shank attaches to Swiss machine gang slides
• Can be axial fed on larger diameters
• Left handed available

3 products

Straddle Knurl Holders

Specifically designed for Swiss-type machines; our low profile straddle knurl holders keep interference to a minimum within the tooling envelope of most machines while ensuring adjacent tool positions are available to maximize tooling capacity.

3 products

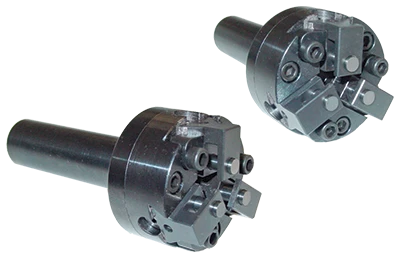

Axial Feed Holders

Compact design makes it ideal for use on screw machines and CNC lathes when axial feed knurling from the turret. Parts are self supported and they can extend through the shank for long jobs. We recommend using CONVEX Knurl Dies with this style Knurl Holder. Can also be adapted for burnishing and internal knurling

6 products
