Ti-Loc ® Mill Extension - Ø3/16", ER20 Taper, Ext. Ø11.4 x 14mm w/Stop Screw

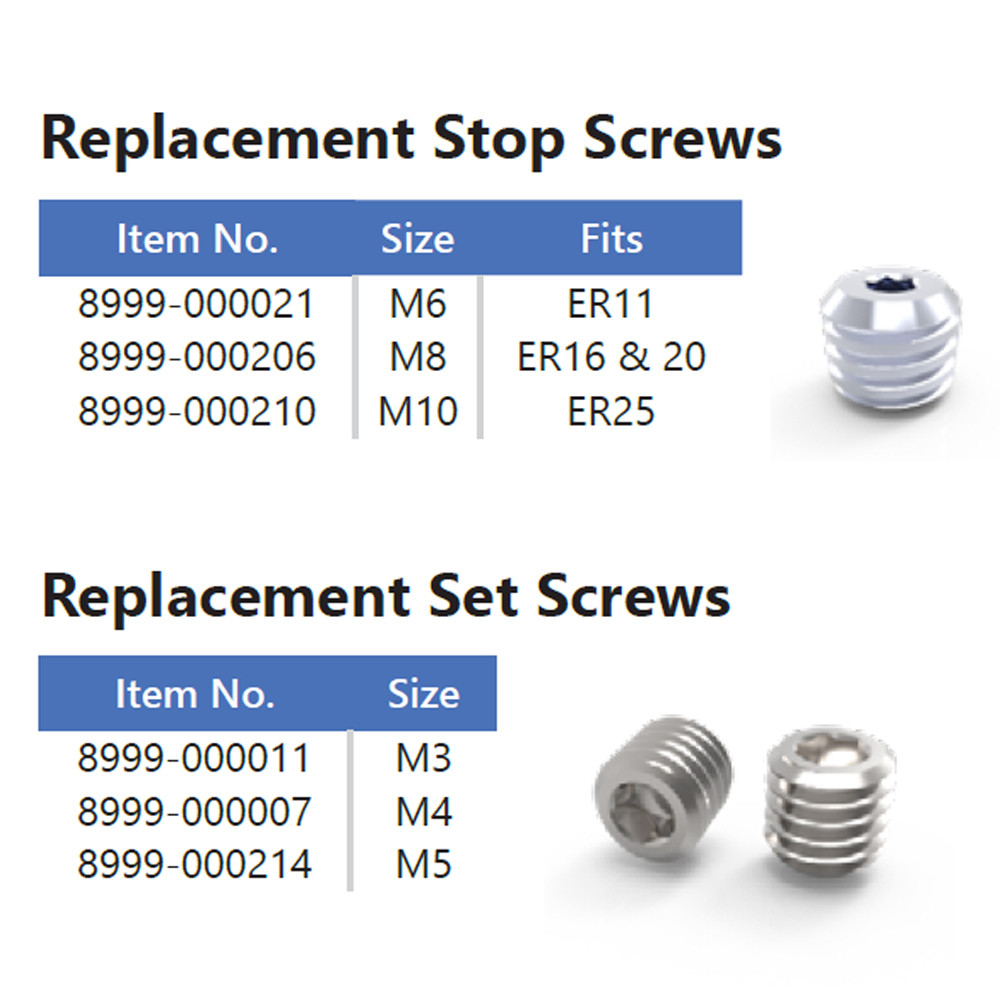

Complete Assembly incl. (3) M3x.5 x 3 Set Screws, & (1) Stop Screw

Note: Hi-Q® ER Mini Nut Sold Separately

GenSwiss Ti-Loc® Micro End Mill Extensions provide an excellent method of holding small shank rotary tooling in a rigid fashion that makes clearing the guide bushing or sub-spindle easy while ensuring exceptional rigidity and low TIR. A must-have for any micro milling application.

Designed to work with virtually any collet or tool holder that employs the dual angle ER collet system (DIN6499). Simply insert the Ti-Loc holder into the ER nut and twist to align the locking cam profile.

• Reduces Tolerance "Stacking" for low TIR <.0002in
• Directly Mounts to ANY ER Taper Live or Static Tool Position
• Extends the Reach of Micro-Endmills and Small Shank Rotary Tools
• Enables QUICK CHANGE of tooling
• Special Sizes available upon request
