Ti-Loc ® Mill Extension - Ø2.00mm, ER16 Taper, Ext. Ø6.35 x 16mm

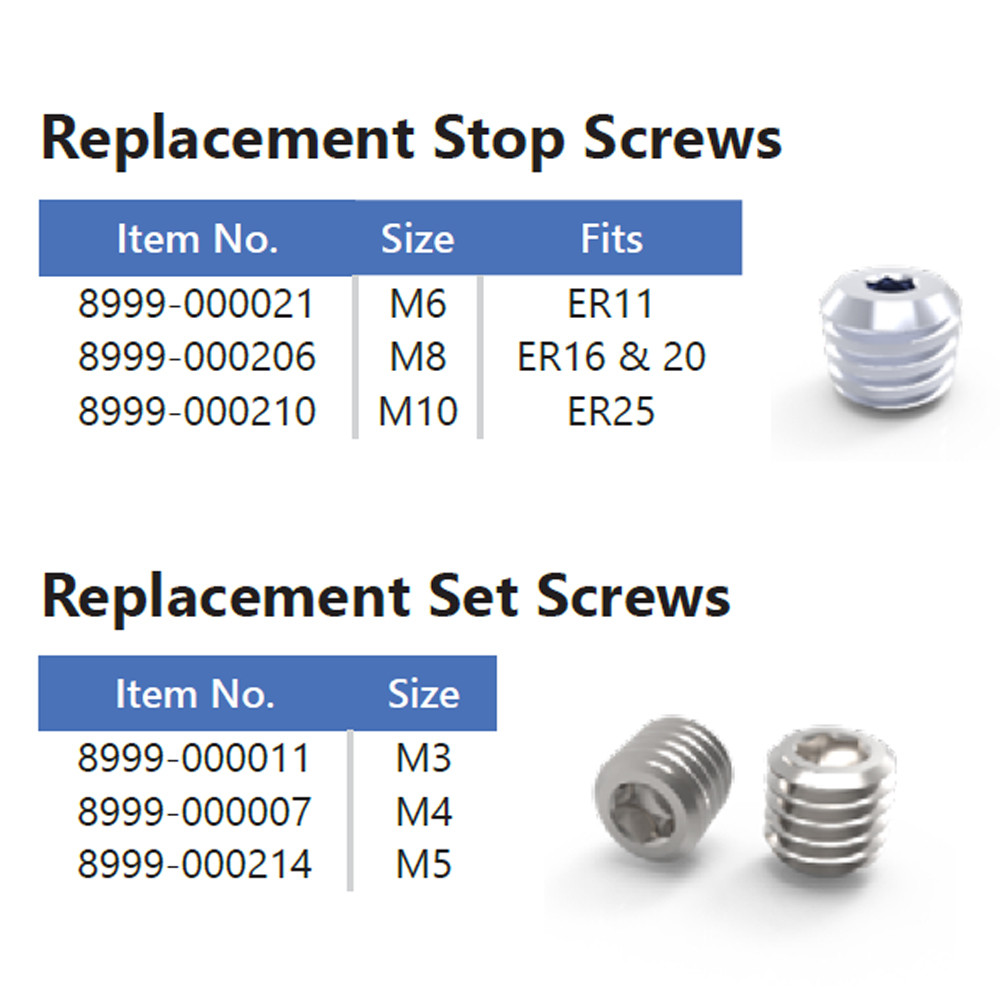

Complete Assembly incl. (3) 8999-000020 M2x.4 x 2 Set Screws, (1) 8999-000007 M4x.7.4 Stop Screw, (1) 7510-000194 .9mm Hex L-Key

GenSwiss Ti-Loc® Micro End Mill Extensions provide an excellent method of holding small shank rotary tooling in a rigid fashion that makes clearing the guide bushing or sub-spindle easy while ensuring exceptional rigidity and low TIR. A must-have for any micro milling application.

Designed to work with virtually any collet or tool holder that employs the dual angle ER collet system (DIN6499). Simply insert the Ti-Loc holder into any ER nut and twist to align the locking cam profile.

• Reduces Tolerance "Stacking" for low TIR <.0002in
• Directly Mounts to ANY ER Taper Live or Static Tool Position
• Extends the Reach of Micro-Endmills and Small Shank Rotary Tools
• Enables QUICK CHANGE of tooling
• Special Sizes available upon request

Note: Hi-Q® ER Mini Nut Sold Separately
